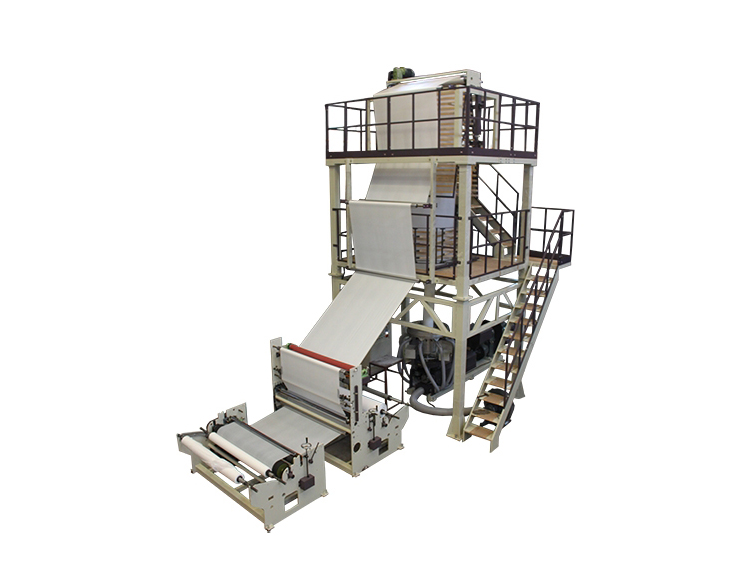

HDPE High Speed Mono Layer Blown Film Machine

CT-H
HDPE High Speed Mono Layer Blown Film Machine | Model CT-H
Features
  • Application: T-shirt bags, shopping bags, garbage bags, mattress cover, laundry bags etc.
  • Suitable material: HDPE / MDPE / HDPE+LLDPE
  • Film layer: 1 layer
  • Screw L/D ratio: 30:1
  • Direct-connection design gearbox.
  • PID+SCR temperature controller.
  • ABB or HITACHI inverter.
  • Gusset device.
Items/Models H25/300 H35/500 H45/650 H55/800 H65/1100 H80/1500 H100/1800
Screw Diameter (mm) 25 35 45 55 65 80 100
Film Width (mm) 100-200 200-400 300-550 400-700 600-950 800-1350 1000-1600
Output (kg/hr) 6 - 12 15 - 28 25 – 45 35 - 75 50 – 90 80 - 160 120 - 220
Film Thickness (mm) 0.006-0.06, depending on the material & film size
Main Motor (HP) 5 10 20 30 50 75 100
