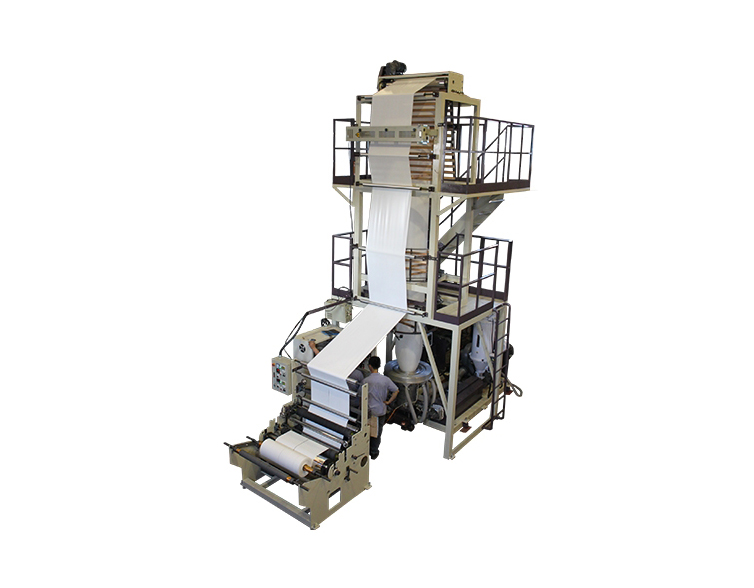

ABA Co-Extrusion Blown Film Machine

CT-ABA
ABA Co-Extrusion Blown Film Machine | CT-ABA
Features
  • Application: T-shirt bags, shopping bags, garbage bags etc.
  • Suitable material: HDPE / MDPE / HDPE+LLDPE (LDPE by request)
  • Film layer: 3 layers
  • Screw L/D ratio: 30:1
  • Direct-connection design gearbox.
  • PID+SCR temperature controller.
  • ABB or HITACHI inverter.
  • Bimetal screw.
  • Gusset device.
Items/Models ABA-3535/650E ABA-3545/800E ABA-4545/800E ABA-4545/1100E ABA-4555/1100E ABA-5555/1500 ABA-5565/1500
Screw Diameter (mm) 35 x 2 35 + 45 45 x 2 45 x 2 45 + 55 55 x 2 55 + 65
Film Width (mm) 300-550 400-700 400-700 600-1000 600-1000 1000-1350 1000-1350
Output (kg/hr) 20 - 45 30 - 60 40 - 75 40 - 75 60 - 90 80 - 120 80 - 140
Film Thickness (mm) HD:0.006-0.06 , depending on the material & film size HD:0.006-0.06 , depending on the material & film size
Main Motor (HP) 10 x 2 10 x 2 20 x 2 20 x 2 20 + 30 30 x 2 30 + 50
