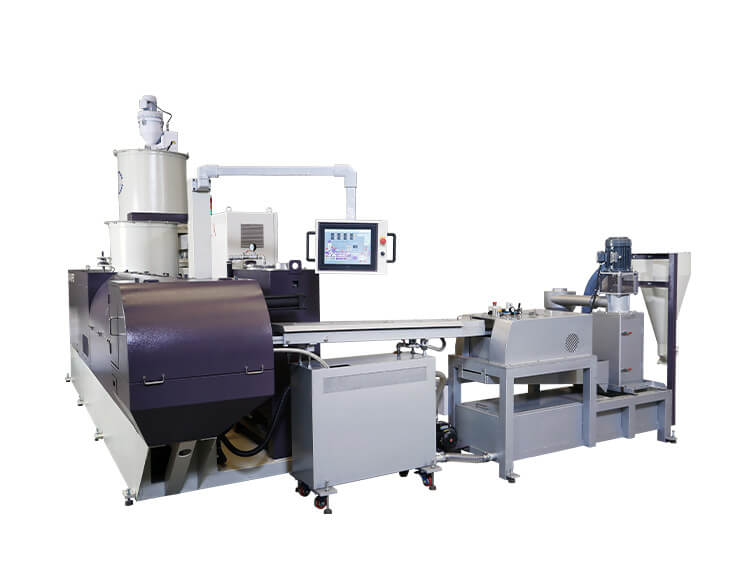

PET Single Stage Recycling Machine
Features
- Model: CKR-PET series
- Product: Plastic pellets
- Material: Clean & crushed PET flakes & scraps
- Screw L/D ratio: 38:1
- Volumetric dosing unit for keeping feeding volume stable

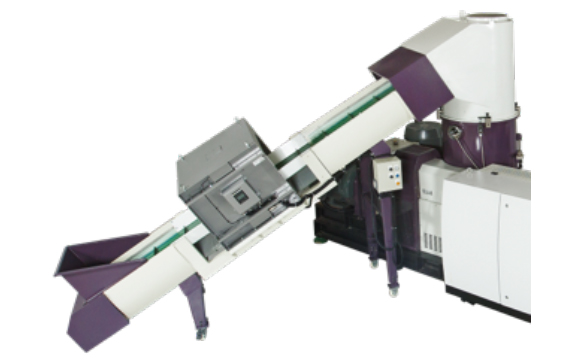

- Powerful compactor for pre-drying PET flakes with dust collection system
- Dual vacuum degassing unit

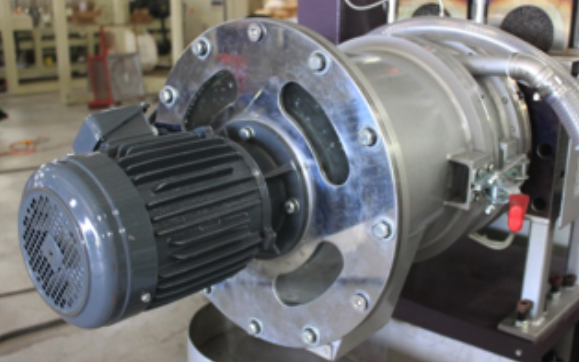

- Underwater strand type pelletizing system (full stainless steel)
- PLC+HMI touch panel control system
| Items/Models | CKR-PET85 | CKR-PET100 | CKR-PET120 | CKR-PET135 | CKR-PET150 |
|---|---|---|---|---|---|
| Suitable Material | Clean & crushed PET flakes & scraps | ||||
| Output (kg/hr) | 150-200 | 240-320 | 350-420 | 450-600 | 650-850 |
| Screw Diameter(mm) | 85 | 100 | 120 | 135 | 150 |
| Screw L/D Ratio | 38 :1 | ||||
| Main Motor (HP) | 100 | 150 | 200 | 300 | 400 |
| Items/Models | CKR-PET85 | CKR-PET100 | CKR-PET120 | CKR-PET135 | CKR-PET150 |
|---|---|---|---|---|---|
| Suitable Material | Clean & crushed PET flakes & scraps | ||||
| Output (kg/hr) | 150-200 | 240-320 | 350-420 | 450-600 | 650-850 |
| Screw Diameter(mm) | 85 | 100 | 120 | 135 | 150 |
| Screw L/D Ratio | 38 :1 | ||||
| Main Motor (HP) | 100 | 150 | 200 | 300 | 400 |
