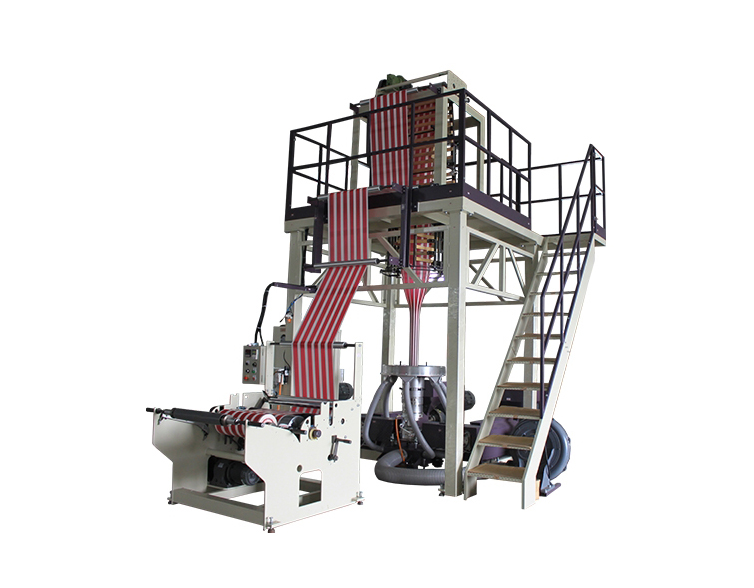

HDPE / LDPE Stripe Two Color Co-extrusion Blown Film Machine
Features
- Application: 2 colors stripe T-shirt bag
- Suitable material: HDPE, LDPE
- Screw L/D ratio: 30:1
- Direct-connection design gearbox.
- PID+SCR temperature controller.
- ABB or HITACHI inverter.
- Gusset device.
| Items/Models | TC35/650 | TC45/800 | TC55/1100 |
|---|---|---|---|
| Screw Diameter (mm) | 35 x 2 | 45 x 2 | 55 x 2 |
| Film Width (mm) | 300-550 | 400-700 | 600-1000 |
| Output (kg/hr) | 25 - 45 | 40 - 75 | 60 - 110 |
| Film Thickness (mm) | HD: 0.006 - 0.06, depending on the material & film size | ||
| Main Motor (HP) | 10 x 2 | 20 x 2 | 30 x 2 |
| Items/Models | TC35/650 | TC45/800 | TC55/1100 |
|---|---|---|---|
| Screw Diameter (mm) | 35 x 2 | 45 x 2 | 55 x 2 |
| Film Width (mm) | 300-550 | 400-700 | 600-1000 |
| Output (kg/hr) | 25 - 45 | 40 - 75 | 60 - 110 |
| Film Thickness (mm) | HD: 0.006 - 0.06, depending on the material & film size | ||
| Main Motor (HP) | 10 x 2 | 20 x 2 | 30 x 2 |
Added to your inquiry
CT-TC
HDPE / LDPE Stripe Two Color Co-extrusion Blown Film Machine
