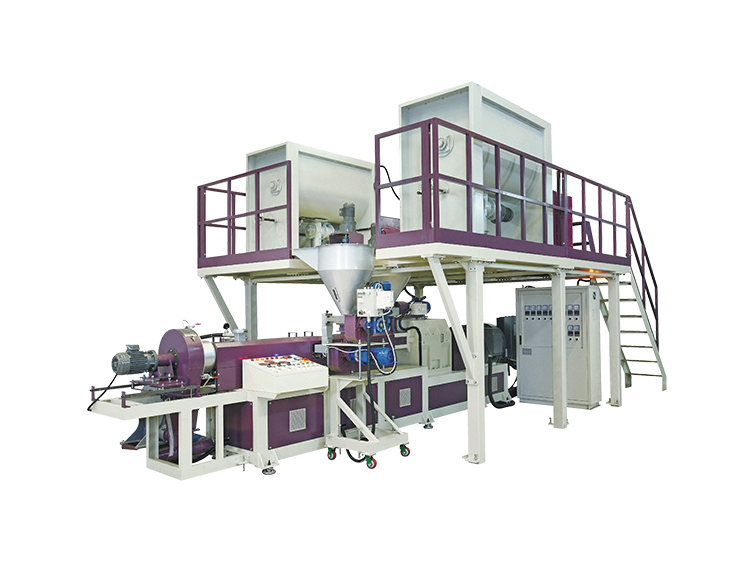

Co-Rotary Twin Screw Extruder
Features
- Model: EKA series
- Final products: Depending on users’ requirements and screw configuration.
- Capacity(kg/hr): 30~1600, the mini capacity for laboratory model from 2-10kg per hour.
- Accurate temperature controlling system can automatically control heater assembly on barrel.
- Various feeding system can be used on main / side feeding zone for different process.
- Heavy duty gear box and transmission system for high torque, high speed and high load.
- The material of screw and barrel is imported from Japan.
| Items/Models | EKA-25LAB | EKA-30D | EKA-42 | EKA-52 | EKA-62 | EKA-72 | EKA-92 |
|---|---|---|---|---|---|---|---|
| Used Material | Depending on user request and final product | ||||||
| Output (kg/hr) | 2-10 | 30-100 | 60-200 | 100-400 | 150-650 | 300-1000 | 600-1600 |
| Screw diameter(mm) | 25 | 30 | 41 | 51.4 | 62.4 | 71 | 93 |
| Screw L/D ration | 42:1 | 40:1 | |||||
| Main Motor (HP) | Servo 5 | 15-25 | 40-60 | 50-125 | 125-225 | 200-300 | 450-600 |
| Cutting System(by request) | Strand type water cooling | ||||||
| Air cooling die-face-cut | |||||||
| Water cooling die-face-cut | |||||||
| Underwater die-face-cut | |||||||
- Masterbatch Production. (carbon black, color pigments, flame-retardants, degradable MB,.)
- Polymer Blending & Alloying (thermoplastic/rubber, plastic alloy )
- Filling Modification (calcium carbonate, Talc, TiO2, ceramic powder, wood and fiber.)
- Reinforcing Modification. ( short GF, long GF, carbon fiber, other fillers.)
- Reaction. ( TPU, polymerization, PMMA, PI, POM, Grafting reaction…)
- Degassing. ( K-resin, CPP, FI rubber, SBS/SEBS ..)
- Other application (PET recycling)
Various type of feeding system

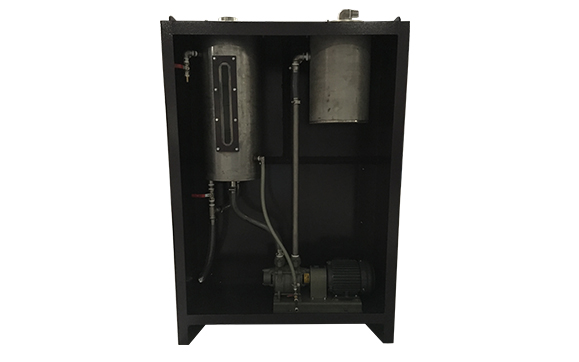

Vacuum degassing device.

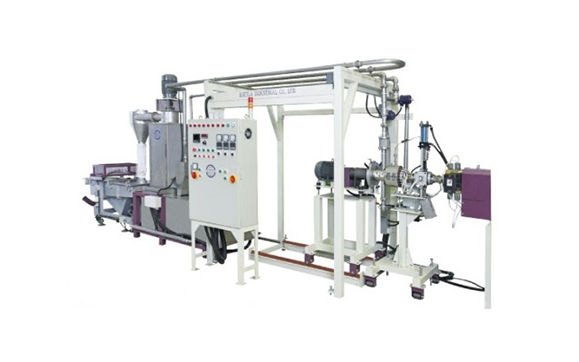

Underwater cutting system

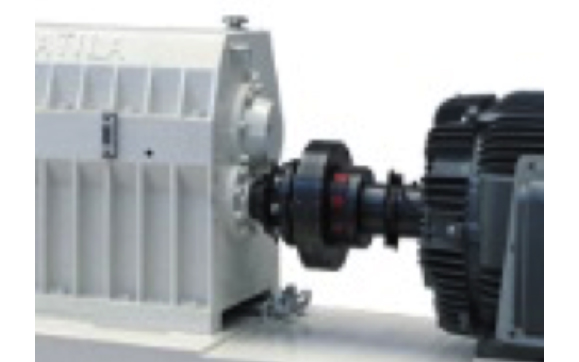

Gear box & Torque limiter & AC motor.
Dual cavity slide plate type melt filter.

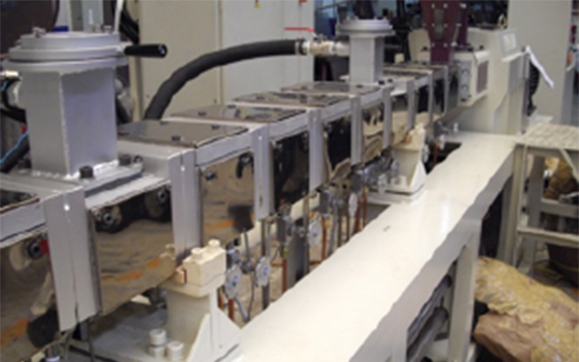

Screw design is segmented and the configuration is modifiable. The zones in the extruder can be divided into input barrel, closed barrel, side-feeder barrel, degassing barrel, combination barrel…etc. These permutation and combination of screw and barrel can be arranged by customer’s request.
| Items/Models | EKA-25LAB | EKA-30D | EKA-42 | EKA-52 | EKA-62 | EKA-72 | EKA-92 |
|---|---|---|---|---|---|---|---|
| Used Material | Depending on user request and final product | ||||||
| Output (kg/hr) | 2-10 | 30-100 | 60-200 | 100-400 | 150-650 | 300-1000 | 600-1600 |
| Screw diameter(mm) | 25 | 30 | 41 | 51.4 | 62.4 | 71 | 93 |
| Screw L/D ration | 42:1 | 40:1 | |||||
| Main Motor (HP) | Servo 5 | 15-25 | 40-60 | 50-125 | 125-225 | 200-300 | 450-600 |
| Cutting System(by request) | Strand type water cooling | ||||||
| Air cooling die-face-cut | |||||||
| Water cooling die-face-cut | |||||||
| Underwater die-face-cut | |||||||
