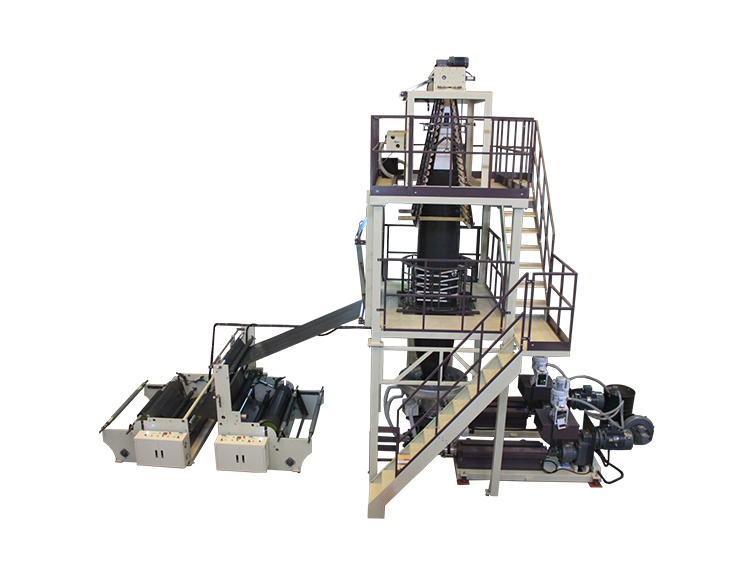

LDPE Double Layer Blown Film Machine

CT-DL
LDPE Double Layer Blown Film Machine
Features
  • Application: Agriculture film, construction film, water pouch, garbage bag etc.
  • Suitable material: LDPE / LLDPE (HDPE by request)
  • Film layer: 2 layers
  • Screw L/D ratio: 30:1
  • Direct-connection design gearbox.
  • PID+SCR temperature controller.
  • ABB or HITACHI inverter.
Items/Models DL35/800 DL45/1100 DL55/1500 DL65/2000 DL80/3000 DL100/4000 DL6580/2500 DL80100/3500
Screw Diameter (mm) 35 x 2 45 x 2 55 x 2 65 x 2 80 x 2 100 x 2 65 + 80 80 + 100
Film Width (mm) 400-700 600-1000 800-1350 1200-1800 2000-2800 3000-3800 1500-2300 2500-3300
Output (kg/hr) 25-60 40-100 80-150 140-220 200-340 300-500 300-500 240-420
Film Thickness (mm) 0.02-0.15, depending on the material & film size 0.02-0.15, depending on the material & film size
Main Motor (HP) 10 x 2 20 x 2 30 x 2 50 x 2 75 x 2 100 x 2 50 + 75 75 + 100
