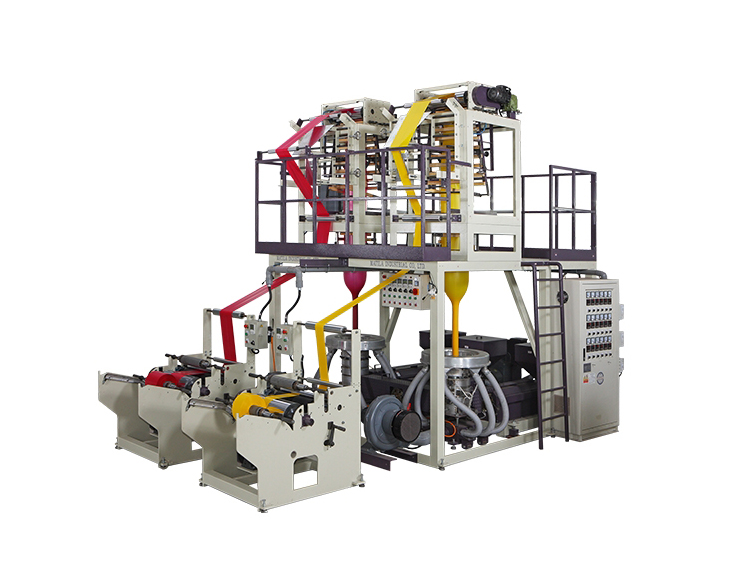

ABA Co-Extrusion Line Twin Head Blown Film Machine
Features
- Application: T-shirt bags, shopping bags, garbage bags etc.
- Suitable material: HDPE / MDPE / HDPE+LLDPE
- Film layer: 3 layers
- Screw L/D ratio: 30:1
- Direct-connection design gearbox.
- PID+SCR temperature controller.
- ABB or HITACHI inverter.
- Bimetal screw.
- Gusset device.
| Items/Models | ABA/TH3545/500 | ABA/TH4555/650 | ABA/TH5565/800 | |||
|---|---|---|---|---|---|---|
| Screw Diameter (mm) | 35 x 2 + 45 x 1 | 45 x 2 + 55 x 1 | 55 x 2 + 65 x 1 | |||
| Film Width (mm) | 200-400 x 2 lines | 300-550 x 2 lines | 400-700 x 2 lines | |||
| Output (kg/hr) | 40 - 80 | 50 - 110 | 60 - 150 | |||
| Film Thickness (mm) | HD:0.006-0.06, depending on the material & film size | |||||
| Main Motor (HP) | 10 x 2 + 20 x 1 | 20 x 2 + 30 x 1 | 30 x 2 + 50 x 1 | |||
| Items/Models | ABA/TH3545/500 | ABA/TH4555/650 | ABA/TH5565/800 | |||
|---|---|---|---|---|---|---|
| Screw Diameter (mm) | 35 x 2 + 45 x 1 | 45 x 2 + 55 x 1 | 55 x 2 + 65 x 1 | |||
| Film Width (mm) | 200-400 x 2 lines | 300-550 x 2 lines | 400-700 x 2 lines | |||
| Output (kg/hr) | 40 - 80 | 50 - 110 | 60 - 150 | |||
| Film Thickness (mm) | HD:0.006-0.06, depending on the material & film size | |||||
| Main Motor (HP) | 10 x 2 + 20 x 1 | 20 x 2 + 30 x 1 | 30 x 2 + 50 x 1 | |||
