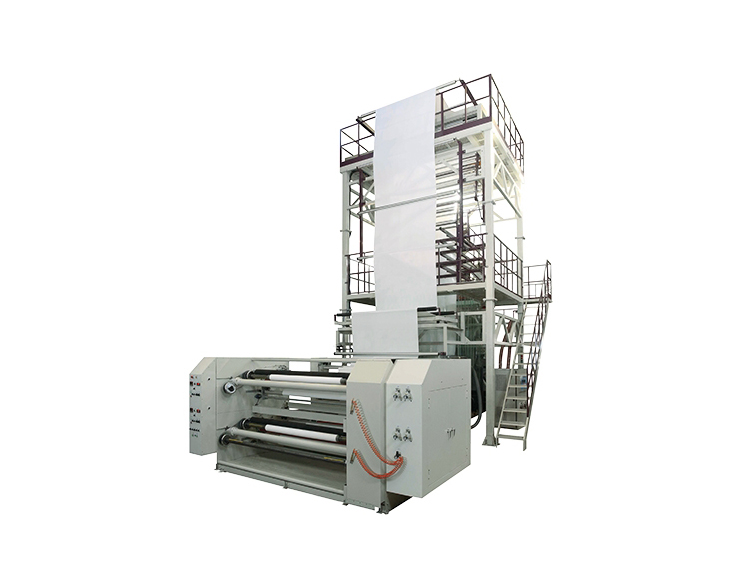

TPU Mono/ Double Layer Blown Film Machine
Features
- Suitable material: TPU compounded material / LDPE
- Screw L/D ratio: 30:1
- Direct-connection design gearbox.
- PID+SCR temperature controller.
- ABB or HITACHI inverter.
- Die rotary device.
- E.P.C. Edge position film guiding system.
- Central winding manual winder + Side slitters + Trim waste rewinder.
- Air shaft x 4 pcs.
| Items/Models | TPU35/300 | TPU45/500 | TPU55/650 | TPU80/2000 | TPU100/2600 | TPU8055/2000 | TPU1065/2600 |
|---|---|---|---|---|---|---|---|
| Screw Diameter (mm) | 35 | 45 | 55 | 80 | 100 | 55+80 | 65+100 |
| Film Width (mm) | 130-200 | 250-400 | 350-500 | 1600 | 2200 | 1600 | 2200 |
| Output (kg/hr) | 5 - 15 | 15-30 | 20-40 | 40-80 | 60-100 | 65-130 | 80-160 |
| Film Thickness (mm) | 0.03-0.12, depending on the material & film size | 0.015-0.08, depending on the material & film size | 0.015-0.08, depending on the material & film size | ||||
| Thickness Tolerance | +/- 10% | ||||||
| Main Motor (HP) | 10 | 15 | 25 | 50 | 60 | 30+50 | 50+60 |
| Items/Models | TPU35/300 | TPU45/500 | TPU55/650 | TPU80/2000 | TPU100/2600 | TPU8055/2000 | TPU1065/2600 |
|---|---|---|---|---|---|---|---|
| Screw Diameter (mm) | 35 | 45 | 55 | 80 | 100 | 55+80 | 65+100 |
| Film Width (mm) | 130-200 | 250-400 | 350-500 | 1600 | 2200 | 1600 | 2200 |
| Output (kg/hr) | 5 - 15 | 15-30 | 20-40 | 40-80 | 60-100 | 65-130 | 80-160 |
| Film Thickness (mm) | 0.03-0.12, depending on the material & film size | 0.015-0.08, depending on the material & film size | 0.015-0.08, depending on the material & film size | ||||
| Thickness Tolerance | +/- 10% | ||||||
| Main Motor (HP) | 10 | 15 | 25 | 50 | 60 | 30+50 | 50+60 |
